Working principle
At the core of our plastic granulator machine is an open rotor mounted withheavy-duty knives in either a double-scissor cut or v-shape array based on yourrequirements. As the rotor is spun at high speeds, the rotor knives come incontact with stationary knives that are mounted within the cutting chamber.The material is continuously cut until they are small enough to pass through ascreen filter.
Generally speaking, our filter screens are between 10mm to 100mm but can becustomized according to your requirements.

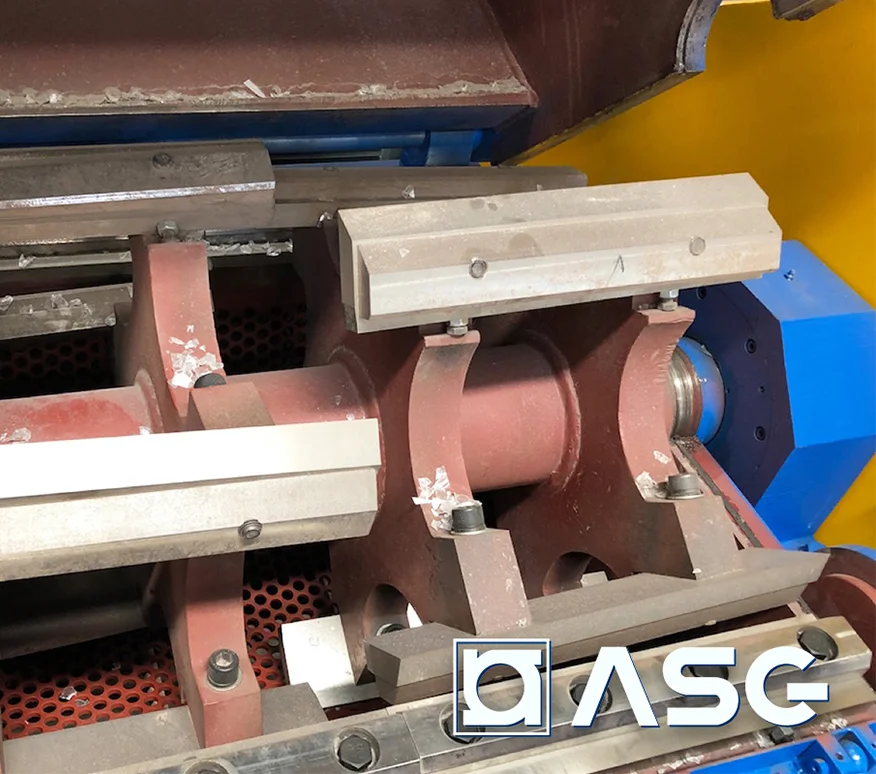

Our standard plastic granulator houses 12 rotor and 3 stationary knives. All knives use only ultra durable D2(equivalent to SDK1 1) high-carbon, high-chromium steel which ensures the longest usage times before requiringsharpening. All knives are easily adjustable with hydraulic assisted access to the cutting chamber.
Product Parameter
| Model | Rotor Diameter | Rotor Width | Rotating Speed | Approx.Output | Motor Power |
|---|---|---|---|---|---|
| SWHB600 | ⌀450mm | 600mm | 400-600rpm | 300kg/h | 37kw |
| SWHB800 | ⌀500mm | 800mm | 400-600rpm | 600kg/h | 45kw |
| SWHB1000 | ⌀600mm | 1000mm | 400-600rpm | 900kg/h | 75kw |
| SWHB1200 | ⌀700mm | 1200mm | 400-600rpm | 1200kg/h | 90kw |
Quality Supervision
ASG GROUP has advanced special processing equipment, strong technicalcapability, and can make use of modern CAD/CAM/CNC technology to guaranteeto manufacture perfect products.
ASG success originates from the perfect appearance as well as delicateparticulars of its product.
After precise and strict inspection of each bolt ,each process and eachequipment, we deliver exquisite works to our customers.
