Working principle

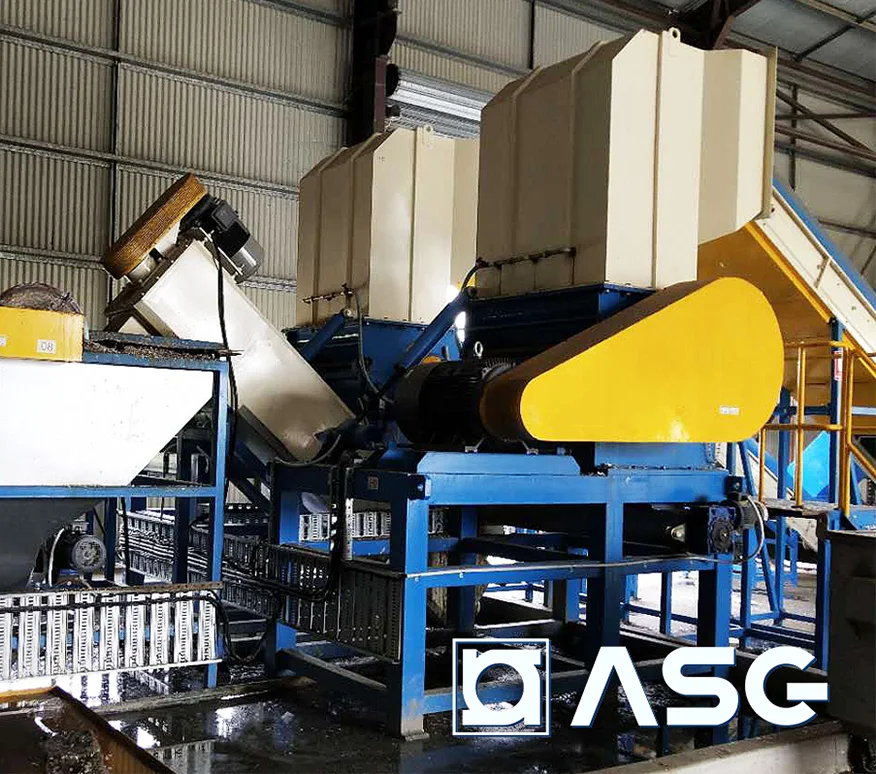

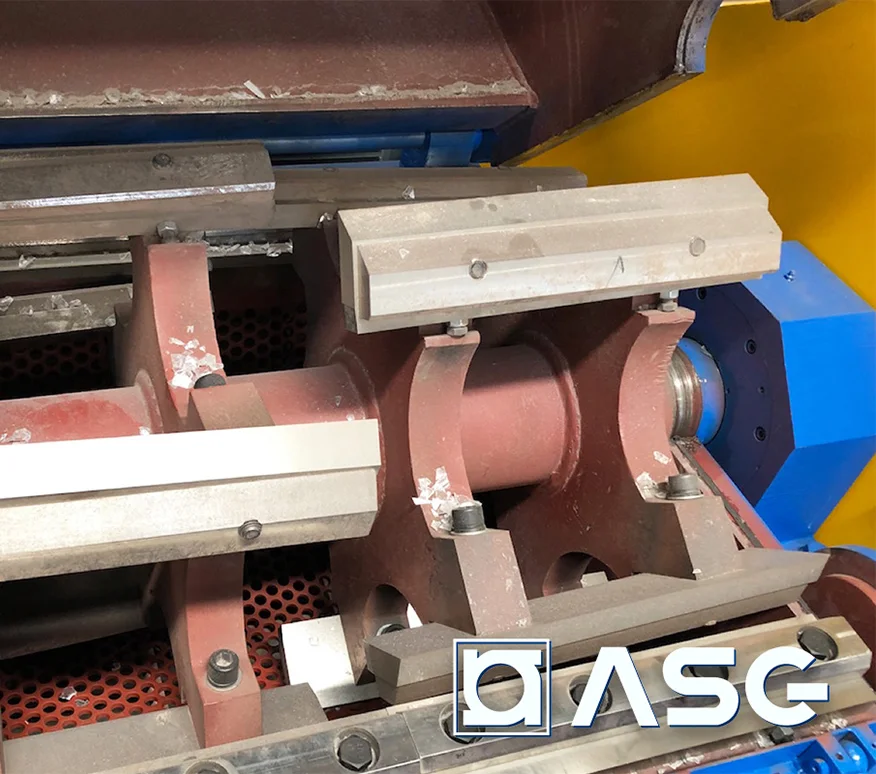

In terms of grinding, our wet plastic granulator machines are identical in structure to our general-purpose plasticgranulators. At the core of this machine is an open rotor mounted with ultra durable D2 (equivalent to SDK11) high.carbon, high-chromium steel knives in either a double-scissor cut or v-shape array based on your requirements.
For purposes of cuting PET bottles and plastic films, we suggest using the v-shape arrangement. lf the granulator ismainly used to cut rigid plastics, use the double-scissor cut arrangement.
As the rotor is spun at high speeds between 400-600 rpm, these extremely sharp rotor knives come in contact with stationary knives that are mounted within the cutting chamber.

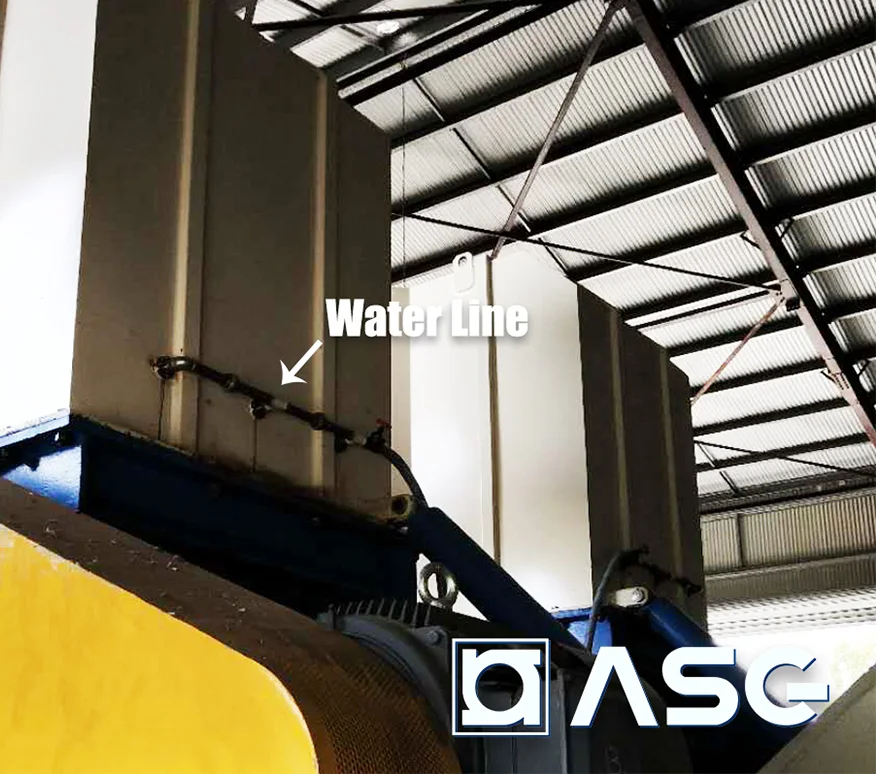

A water line is added to the rear of this wet plastic granulator machine where water is sprayed onto the plastic as it isbeing cut. The plastic mixes within the cutting chamber as it is continuously cut and pre-washed until the pieces aresmall enough to pass through a screen filter.
Our standard screen filter size is between 10mm - 100mm but can be customized to your requirements.
Product Parameter
| Model | Rotor Diameter | Rotor Width | Rotating Speed | Approx.Output | Motor Power |
|---|---|---|---|---|---|
| SWHB600-W | ⌀450mm | 600mm | 400-600rpm | 300kg/h | 37kw |
| SWHB800-W | ⌀500mm | 800mm | 400-600rpm | 600kg/h | 45kw |
| SWHB1000-W | ⌀600mm | 1000mm | 400-600rpm | 900kg/h | 75kw |
| SWHB1200-W | ⌀700mm | 1200mm | 400-600rpm | 1200kg/h | 90kw |
Quality Supervision
ASG GROUP has advanced special processing equipment, strong technicalcapability, and can make use of modern CAD/CAM/CNC technology to guaranteeto manufacture perfect products.
ASG success originates from the perfect appearance as well as delicateparticulars of its product.
After precise and strict inspection of each bolt ,each process and eachequipment, we deliver exquisite works to our customers.
